Coniflex Bevel Gear With Straight Teeth AISI 4140 ISO 8-9 Grade

Brand Name : YZGEAR

Model Number : BG22072201

Place of Origin : CHINA

MOQ : 1 Set

Price : $300.0/Set

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 200 Sets/Month

Delivery Time : 55 Days

Packaging Details : Plywood Crate

Material : 42CrMo/AISI 4140

Heat Treatment : Induction Hardening

Hardness : Gear 50-55 HRC Pinion 58-62 HRC

Gear Quality : ISO 8-9 Grade

Profile Type : Straight Bevel Gear

Quality Grade : ISO 8-9 Grade

Contact Now

Customized 90 Degree Confiflex Gear of Cone Crusher-Straight Bevel Gears

1) Description of straight bevel gear

Straight bevel gear is a gearin which teeth have tapered conical elements taht have the same direction as

the pitch cone base line.

2) Features of straight bevel gear

The straight bevel gear is both the simplest to prdocution and the most widely used in the bevel gear types.

3) Material of straight bevel gear

The material can be carbone steel 45#, alloy steel 20CrNiMo or 40CrNiMoA steel for straight bevel produciton.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Shaping
Teeth Grinding Included
Module (M) 12
Number of Teeth (Z) 26/60
Pressure Angle (α) 20°
Lead Angle Custom
Accuracy Grade ISO 8-9 Grade
Heat Treatment Carburizing/Induction Hardending
Surface Hardness Pinion 58-62 HRC/Gear 50-55 HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

Coniflex Bevel Gear With Straight Teeth AISI 4140 ISO 8-9 Grade

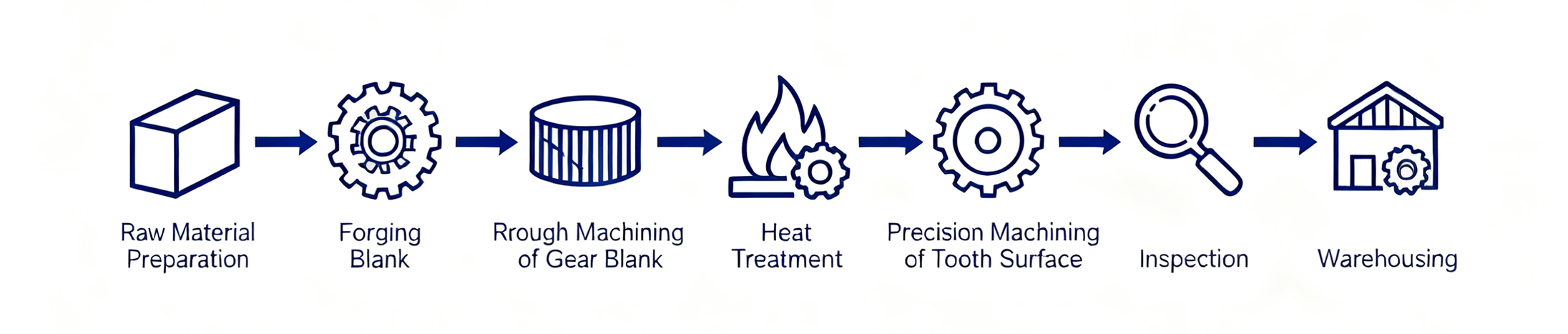

Manufacturing Process

Coniflex Bevel Gear With Straight Teeth AISI 4140 ISO 8-9 Grade
